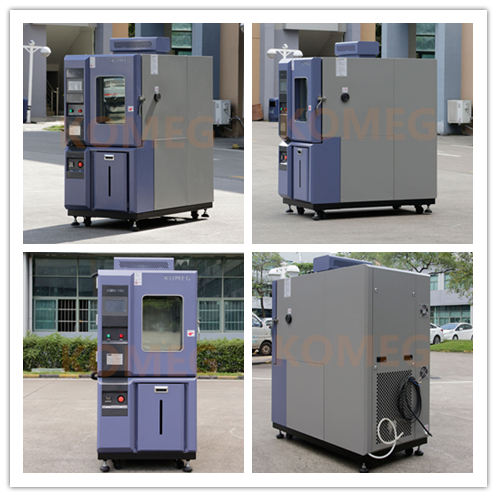

Customized Touch Screen solar panel testing Environmental Chamber
Applications
KOMEG environmental Chambers expose products to a variety of temperatures and humidity levels, offering a complete and comprehensive way to improve product reliability.
KOMEG environmental Chambers provide accurate and reliable test results. With more standard features and better performance capabilities than comparable chambers on the market
KOMEG environmental Chambers improve products through dynamic testing solutions.
| Environmental Temperature and Humidity Chamber |
| Secifications ( at +20ºC room temp. Or+25ºC water temp with empty load) |
| Model | KMH-R series | KMH-L series | KMH-S series |
| 1000R | 1000L | 1000S |
| Temp. range | -20ºC~150ºC | -40 ºC~+150ºC | -70ºC~+150ºC |
| Interior sizel | W(mm) | 1000 | 1000 | 1000 |
| H(mm) | 1000 | 1000 | 1000 |
| D(mm) | 1000 | 1000 | 1000 |
| Exterior size | W(mm) | 1280 | 1280 | 1280 |
| H(mm) | 2160 | 2160 | 2160 |
| D(mm) | 1950 | 1950 | 1950 |
| Power(KW) | 12.8 | 14.5 | 18.5 |
| Weight(KG) | 580 | 600 | 650 |
| Humidity uniformity | ±5.0%R.H |
| Heat up time | -20ºC~+100ºC,within 35 min | -40ºC~+100ºC, within 45 min | -70ºC~+100ºC,within 60 min |
| Pull down time | +20ºC~-20ºC, within 45 min | +20ºC~-40ºC , within 60 min | +20ºC~-70ºC,within 80 min |
| Standard accessories | Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m |
| Safety device (standard) | No fuse breaker, over pressureover heat and over current protection for compressor, |
| Over temp. protect, over load protect of blower, dry heat protection |
| Control System | Balanced Temperature & Humidity Control System |
| Refrigeration system | Air Cooled (Water Cooled Type is option) |
| Hermetic compressor,Single stage refrigeration system |
| CFC-Free refrigerant(HFC-507/HFC-23) |
| Controller | Panel:7-inch LCD Touch panel, Chinese or English display selectable |
| Operation model :Program or fix point running |
| Memory capacity :120programs,1200steps, |
| All repeat 999 cycles, part repeat 99 cycles |
| Humidity Range | 20~98%R.H |
| Temp. constancy | ±0.5ºC |
| Humidity constancy | ±2.5%R.H |
| Temp. uniformity | ±2.0ºC |
| Interior material | Stainless Steel Plate(SUS 304) |
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) |
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool |
| Ambient Temp. | +5ºC~+35ºC |
| Wiring method | AC 380±10%50Hz ,3 phase 4 wires +Ground Wires |
Note: 1. We reserve the right to change specifications without prior notice
2. Customized sizes and configurations available |
Features
Rational Construction and fast cooling rate
Frequency conversion control of wind speed.
Adopts international brand of imported parts for cooling system to improve operation reliability
Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
Standards Implemented and met
●GB10592-89 Technical requirements for high and low temperature test chamber
●GB2423.1-1989 Low temperature test mode
●GB2423.2-1989 High temperature test mode
●GJB150.3-1986 High temperature test mode
●GJB150.4-1986 Low temperature test mode
●GJB150.9-1986 Warm test method
Standard configuration
●Stainless steel exterior
●Energy-efficient refrigeration with exclusive electronic expansion valve system
●Specialized humidity generation and control
●Unique thermal break construction for extreme testing
●Sight window*1, cable port(portΦ50mm)*1, shelves*2, chamber lamp*1, power cable *2m
●No fuse breaker, over pressure,over heat and over current protection for compressor, Over temperature protection, over load protect of blower, dry heat protection
Optional accessories
●Cable Port: Φ100mm cable port is available
●Shelves
●Ro-type water purifier:R-80/day
Provide to keep the humidifying heater and wet bulb wick free from scale.
●Inner glass door with operation port
A glass door can be provided behind the main door so that specimens can be observed. Two operation ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door.
●Dehumidifier
The rotation regenerating dehumidifier M-120 ensures precise control of low humidity (5℃ 5%RH) for electrostatic reliability tests.
●Temperature and humidity recorder
Temperature 1 pen and humidity 1 pen.
Temperature 3 dots and humidity 1 dot.
Temperature 6 dots and humidity 6 dots.
●Defrosting circuit
The chamber automatically detects and melts the frost on the evaporator when operating below 0℃.
●Liquid or infection
In order to rapidly decrease the temperature inside the chamber, a cylinder of liquid can be connected the chamber
F. Energy-saving operation, the KM-5166 controller uses advanced control of an electronic expansion valve to save energy and improve control of the refrigeration system. Improvements in refrigeration and heater operation make the new generation of KOMEG environmental test chambers the most energy efficient ever.
Material:
Interior material: Stainless Steel Plate SUS304#
Exterior material: Baked Painting Steel Plate or Stainless Steel SUS304#
Insulation material: Rigid polyurethane Foam and Glass Fiber Wool
Refrigeration system:
Water Cooled
Hermetic compressor, stag refrigeration system
Some environmental test chamber details
Part of the certificate for KOMEG test chamber
