Climatic Test Chamber, Temperature Humidity Environmental Test Chamber
1. Standard:
GB11158 Technical conditions for high-temperature testing box
GB10589-89 Technical conditions for low-temperature testing box
GB10592-89 Technical conditions for high and low temperature testing box
B/T10586-89 technical conditions for humidity testing chamber
GB/T2423.1-2001 Low-temperature testing methods
GB/T2423.2-2001 High-temperature testing methods
B/T2423.3-93 Testing Method for humidity Test Chamber
GB/T2423.4-93 Alternating hot and humid testing method
GB/T2423.22-2001temperature testing method
IEC60068-2-1.1990 low-temperature testing method
IEC60068-2-2.1974 high-temperature testing method
GJB150.3 high-temperature testing
GJB150.4 low-temperature testing
GJB150.9 humid testing
2.Temperature Humidity Test Chamber Features:
3. Specifications:
KMH-L series
| Model | KMH series |
| 150 L | 225 L | 408 L | 800 L | 1000 L |
| Temp. range | -20°C ~180°C, -40°C ~180°C, -70°C ~180°C for option |
| Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 |
| D(mm) | 460 | 480 | 800 | 800 | 1000 |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 |
| Weight(KG) | 250 | 300 | 420 | 530 | 600 |
| Temp. uniformity | ±2.0ºC | |
| Heat up time | -40°C ~+100°C ,within 45 min |
| Pull down time | +20°C ~-40°C , within 60 min |
| Humidity Range | 10~98%R.H |
| Temp. constancy | ±0.5ºC |
| Humidity constancy | ±2.5%R.H |
| Humidity uniformity | ±3.0%R.H or ±5.0%R.H |
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection |
| Warranty | 12 months basiclly, and 24 months for choose |
| Interior material | Stainless Steel Plate(SUS 304) |
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) |
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool |
| Ambient Temp. | +5°C ~+35°C |
| Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires |
| Controller | LCD Touch Screen, Chinese or English display selectable |
| Operation model :Program or fix point running |
| Memory capacity :120programs,1200steps, |
All repeat 999 cycles, part repeat 99 cycles
|
4. Details of the chambers

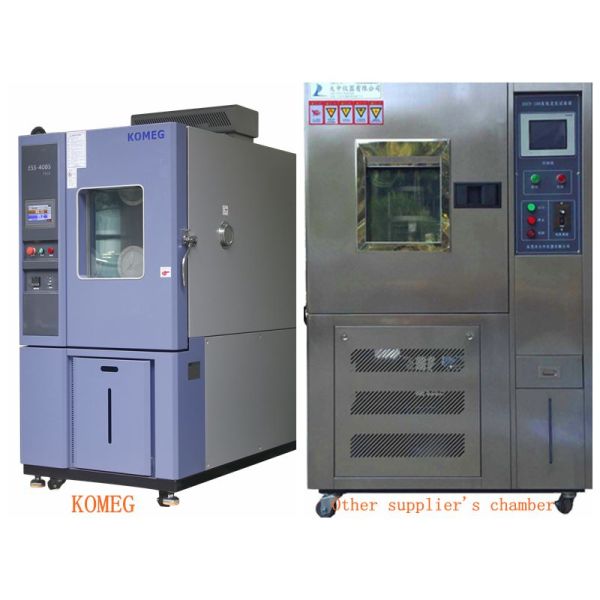

Compared with other suppliers' chamber
5.Parts and brands
6.Trade show:
7. Package
