High and Low Humidity Environmental Test Chamber, Climatic Test Chamber
1. Standard for High and Low temperature test chamber
GB11158 Technical conditions for high-temperature testing room
GB10589-89 Technical conditions for low-temperature testing room
GB/T2423.1-2001 testing methods for low-temperature
GB/T2423.2-2001 testing methods for high-temperature
GB/T2423.3-93 technical conditions for humidity testing room
IEC60068-2-1.1990 testing methods for low-temperature
IEC60068-2-2.1974 testing methods for high-temperature
2. Stability Temperature Humidity Test Chamber ClimaticTest Chamber Features:
3. Specifications:
KMH-L series
| Model | KMT series |
| 150 L | 225 L | 408 L | 800 L | 1000 L |
| Temp. range | -20°C ~180°C, -40°C ~180°C, -70°C ~180°C for option |
| Interior size | W(mm) | 600 | 700 | 700 | 1000 | 1000 |
| H(mm) | 600 | 700 | 750 | 1000 | 1000 |
| D(mm) | 460 | 480 | 800 | 800 | 1000 |
| Exterior size | W(mm) | 880 | 980 | 980 | 1280 | 1280 |
| H(mm) | 1730 | 1890 | 1940 | 2160 | 2160 |
| D(mm) | 1400 | 1460 | 1740 | 1750 | 1950 |
| Power(KW) | 5.8 | 6 | 7.5 | 12.8 | 12.8 |
| Weight(KG) | 250 | 300 | 420 | 530 | 600 |
| Temp. uniformity | ±2.0ºC | |
| Heat up time | -40°C ~+100°C ,within 45 min |
| Pull down time | +20°C ~-40°C , within 60 min |
| Temp. constancy | ±0.5ºC |
| Safety device (standard) | NFB, over pressure,over heat and over current protection for compressor, Over temp. protect, over load protect of blower, dry heat protection |
| Warranty | 12 months basiclly, and 24 months for choose |
| Interior material | Stainless Steel Plate(SUS 304) |
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) |
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool |
| Ambient Temp. | +5°C ~+35°C |
| Wiring method | AC 380±10% 50Hz ,3 phase 4 wires +Ground Wires |
| Controller | LCD Touch Screen, Chinese or English display selectable |
| Operation model :Program or fix point running |
| Memory capacity :120programs,1200steps, |
All repeat 999 cycles, part repeat 99 cycles
|
4. Temperature and Humidity Test Capabilities
KOMEG have a variety of temperature and humidity chambers from small to walk-in chambers that can reproduce a wide range of climatic conditions incluiding high and low temperature as well as combined temperature and humidity conditions. KOMEG also support a climatic test facility dedicated to tests against requirements for telecoms and radio products.
5. Details of the chambers
6.Parts and brands
7.Trade show:
8. Package
Other series for choose:
Programmable Temperature & humidity testing Chamber
Air Thermal Shock Tester
Thermal Shock Tester
Rapid temperature change chamber/ ESS
Salt Spray Tester
Walk In environmental Testing Chamber
Drive in environmental Testing Chamber
Temperature & humidity & Vibration Combined Testing Chamber
Aging Oven Tester
Rain/Spray Testing Chamber
Burn-in testing equipment
Vibration Tester
Precision Oven Tester, etc.
Product Tags:
|
|

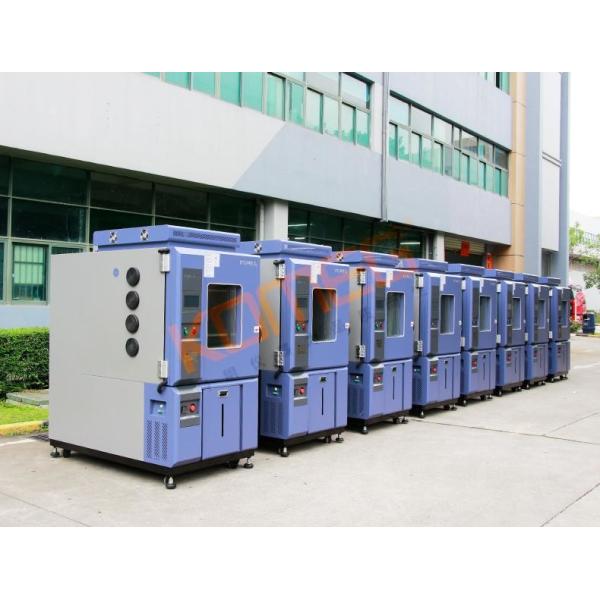

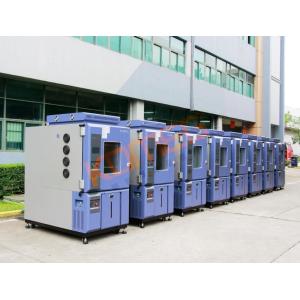

150L High And Low Temperature Test Chamber / Climatic Test Chamber Images
|
